Description

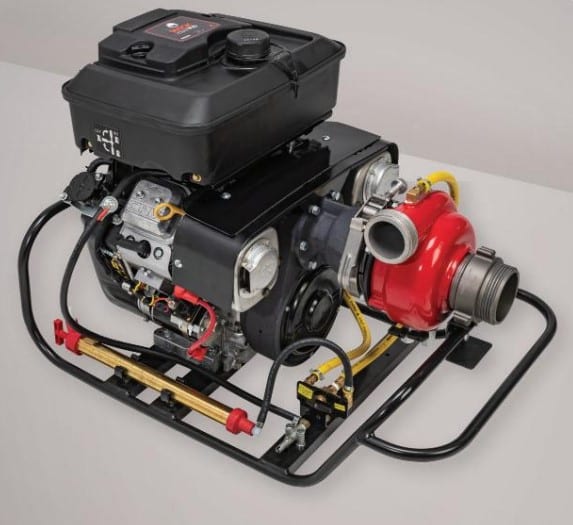

PORTABLE TWO STAGE HIGH FLOW; HIGH PRESSURE FIRE PUMP
• Powered by an 18 HP, 4 stroke, Briggs and Stratton Vanguard “V Twin” air cooled engine with over-speed protection
• Available 23HP
• Electric start (battery optional) with manual recoil backup
• Automotive style air cleaner and external oil filter
• Low oil indicator light
• Foam compatible pump end, interchangeable with our other 2, 3 and 4 stage pump ends
• The pump end comes standard with two drain valves Engine and pump are coupled with our stainless steel quick release clamp
• Maintenance-free speed increaser
• Choice of hand carrying tube frame or a channel base frame for vehicle mount
• Hand priming pump and pressure gauge included
• Standard 3″/76mm NPSH to NH adaptor on intake
• Integral fuel tank (6.95 Qt/6.6 L) and remote fuel connection
• Available with “Low pressure shut-off” to protect the pump on loss of prime
WEIGHT & DIMENSIONS
Length 32.5” 82.5 cm
Width 19.5” 50 cm
Height 24.0” 61 cm
Weight 160 lbs 72.6 kg
Suction 3.0” NPSH 76 mm
Discharge 2.5” NPSH 64 mm
ENGINE
Briggs&Stratton Vanguard – 4 stroke; 18 Hp @ 3600 RPM
Ignition Electronic
Oil Filter Cartridge-type spin-on filter
