Description

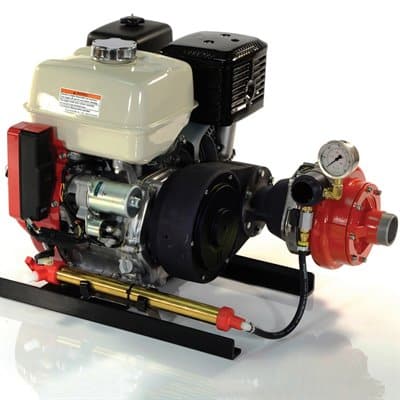

PORTABLE TWO STAGE HIGH PRESSURE FIRE PUMP
• Powered by a 4 stroke, air cooled Honda 13 HP*
engine with over-speed protection
• Electric start (battery optional) with manual recoil
backup
• Automotive style air cleaner and external oil fi lter
• Two stage foam compatible pump end,
interchangeable with our 2 stage pumps and with
our F4200 four stage pump end for increased
pressure.
• Engine and pump are coupled with our stainless
steel quick release clamp
• Maintenance-free speed increaser
• Standard discharge gauge and adaptor

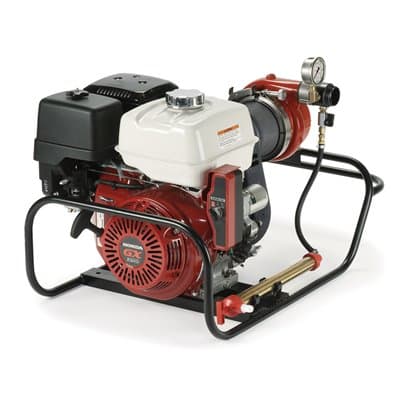

• Choice of hand carrying tube frame or a channel
base frame for vehicle mount
• Hand priming pump and pressure gauge included
• Optional non-return discharge valve
• Optional Remote Fuel (RFT) connection and optional
exhaust primer
WEIGHT & DIMENSIONS
Length 33.0” 84 cm
Width 19.5” 50 cm
Height 18.5” 47 cm
Weight 117 lbs 53 kg
Suction 2.0” NPSH 50 mm
Discharge 1.5” NPSH 38 mm
ENGINE
Honda GX390 4 stroke
Oil filter Cartridge-type spin-on filter
Fuel Tank Capacity 1.7 US Gal. 6.5 L
Electronic Ignition
*Net power output is 11.7 Hp @ 3600 RPM. Mass production engines may
vary from this value.
Performance shown using 2 ½ “/ 64mm suction hose and foot valve
Note: Performance specifications can be subject to change without notice
