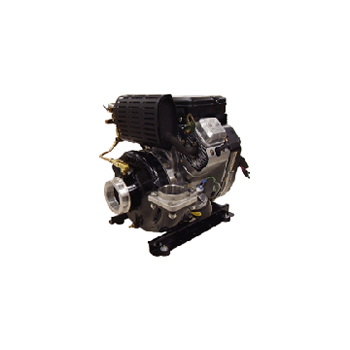

The HP200 Series is a medium pressure, medium volume portable pump.
The pump body and head are coupled together with a stainless steel bank clamp which allows for quick pump removal for servicing. HP200 Series Briggs and Stratton units meet ISO Class 9 Performance ratings.
Maxstream pump with base fuel tank – configured for easy installation by truck builders. Includes built-in exhaust priming layout and rotating discharge valve for quick and easy hose layout. The pumping unit is mounted on a steel skid base. The pumping unit is attached to a steel skid base plate that can easily be mounted into any vehicle. The rail base includes all required hardware and vibration isolators. A remote instrument panel with mounted single discharge gauge and engine controls is included as standard.
Ideal for applications such as:
- Wildland and attack firefighting
- Booster Reel
- Single 1-3/4″ line
- 2-1/2″ supply line
- Max Flow (GPM)245
- Max Pressure (PSI)165
- Length (inches)25
- Width (Inches)17-1/2
- Height (inches)20
- Weight (Pounds)150
- Suction 3″ Female NPT/4″ Victaulic
- Discharge 2-1/2″ Female NPT
