Description

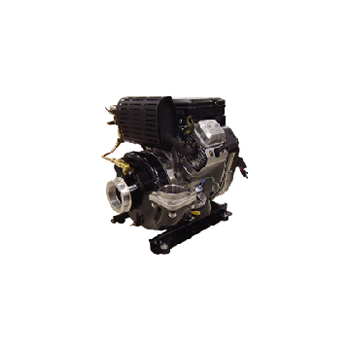

The HPX300 Series is a medium pressure, medium volume portable pump. The pump body and head are coupled together with a stainless steel bank clamp which allows for quick pump removal for servicing.
Maxstream pump without base tank – configured for easy installation by truck builders. Built in exhaust priming system. Rotating discharge valve for quick and easy hose layout. The pumping unit is mounted on a steel skid base. The pumping unit is attached to a steel skid base plate that can easily be mounted into any vehicle. The rail base includes all required hardware and vibration isolators. A remote instrument panel with mounted single discharge gauge and engine controls is included as standard.
Ideal for applications such as:
- Transfer and Supply
- Tank Refilling
- Low pressure firefighting with multiple lines
Available in Briggs and Stratton engines
Technical Data:
- Max Flow (GPM) 400
- Max Pressure (PSI) 120
- Length (inches) 25
- Width (Inches) 17-1/2
- Height (inches) 20
- Weight (Pounds) 152
- Suction 3″ Female NPT/ 4″ Victaulic
- Discharge 3″ Female NPT
